Introduction
After reading Peter Parsons’s “Let’s Rethink Efficiency in the Hearth Industry” in The Fire Time Magazine, I thought I could help. The thermal efficiency of a wood-burning stove is often difficult to quantify—due, in part, to the variability of cord wood. As a result, our industry needs terms that the average shopper and informed salesperson can relate to. Given that need, here’s my proposal: a common fuel package, tools obtainable by most people, and a bit of citizen science to make wood-stoving the experience we all enjoy.
To establish a baseline for thermal performance, the 300-300 Test utilizes a 5-pound compressed sawdust log (such as a Presto log). This test measures the time and intensity of the heat recovery cycle, tracking the stove’s surface temperature from the moment it crests over 300°F (after the combustion peak) until it falls back to the 300°F threshold. This article outlines the procedural rigor required and the geometric analysis of the resulting temperature curve.
The goal is to characterize one stove and compare the test results to another stove using an easy-to-understand method.
Experimental Procedure
To ensure repeatability, the stove must reach a state of elevated thermal equilibrium before the test begins.
- Preheating: The stove is fired with standard cord wood until a stable coal bed is established and 300°F has been exceeded.
- The Trigger Point: Monitoring the surface temperature (ideally a digital thermometer or thermocouple bonded to the stove), the operator waits for the temperature to descend to exactly 300°F.
- Fuel Loading: A single 5-pound compressed sawdust log is placed onto the glowing coals. Primary air intakes should be set to a predetermined “medium” position to simulate standard use.
- Convection Air and Draft-Inducing Fans: Operate as normal.
- The Thermal Dip: Initially, the temperature will drop (the “dip”) as the log undergoes endothermic pyrolysis, absorbing energy from the coals to evaporate residual moisture and begin off-gassing.
- The Rise and Peak: As the log ignites and the temperature crosses the 300°F line, note the time (the “Start” of our triangle). The stove will peak, typically in the 250°F to 450°F range. Again, note the peak and time. Some stoves don’t recover above 300°F.
- The Decline: Once the fuel package has been consumed and the log is reduced to charcoal, the temperature will slowly decline back to 300°F (the “End” point). Once more, note the time.
Results
When you review the data from the run, you’ll see a baseline as the minutes the stove was elevated from the burning of the sawdust log. You also have the peak temperature and where it occurred on this timeline. A stove that quickly peaks and releases heat may be desired for a small or short-term space like a shop. If you’re heating a large home and are burning around the clock, a stove that delays the peak temperature until later is desirable.
When the fuel is placed into the stove, the initial dip represents the activation energy required to bring the surface of a 5-pound mass to its ignition temperature. In a smaller stove, this dip is shallow and brief. If the stove has a poor coal bed, the dip may be deep, delaying the “crossing back” point and indicating lower thermal responsiveness.

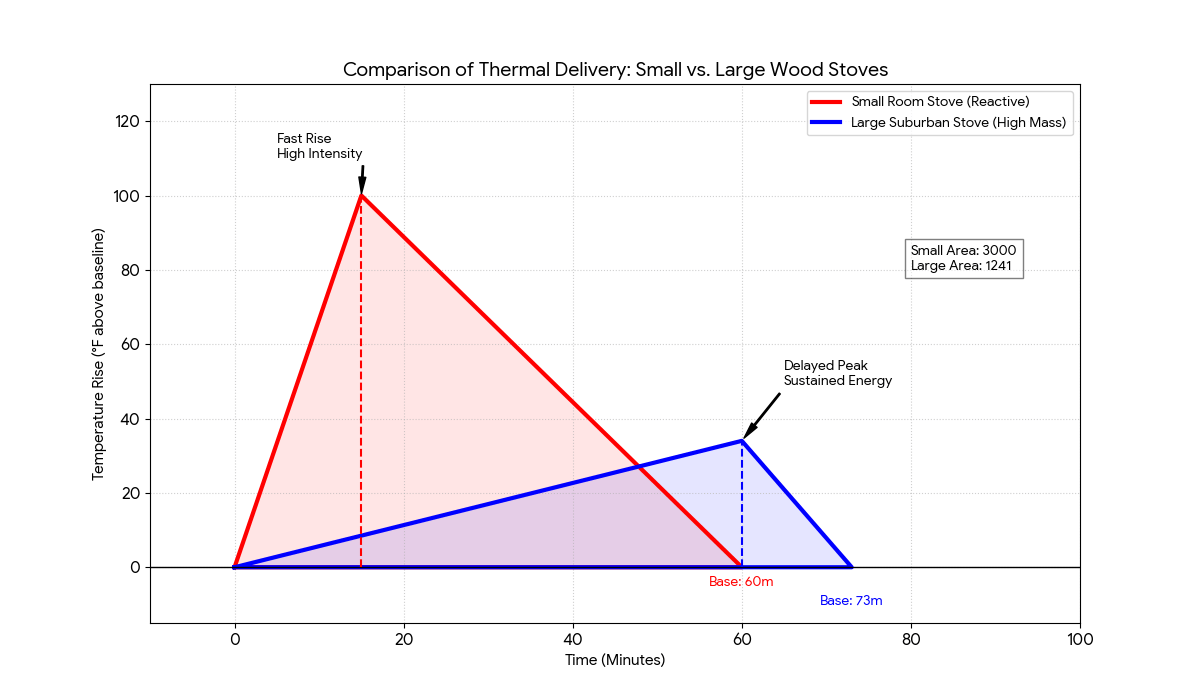

Figure 1: Small reactive stove presents a peak temperature quickly. The large insert with more mass to it sustains the heat for a longer duration.

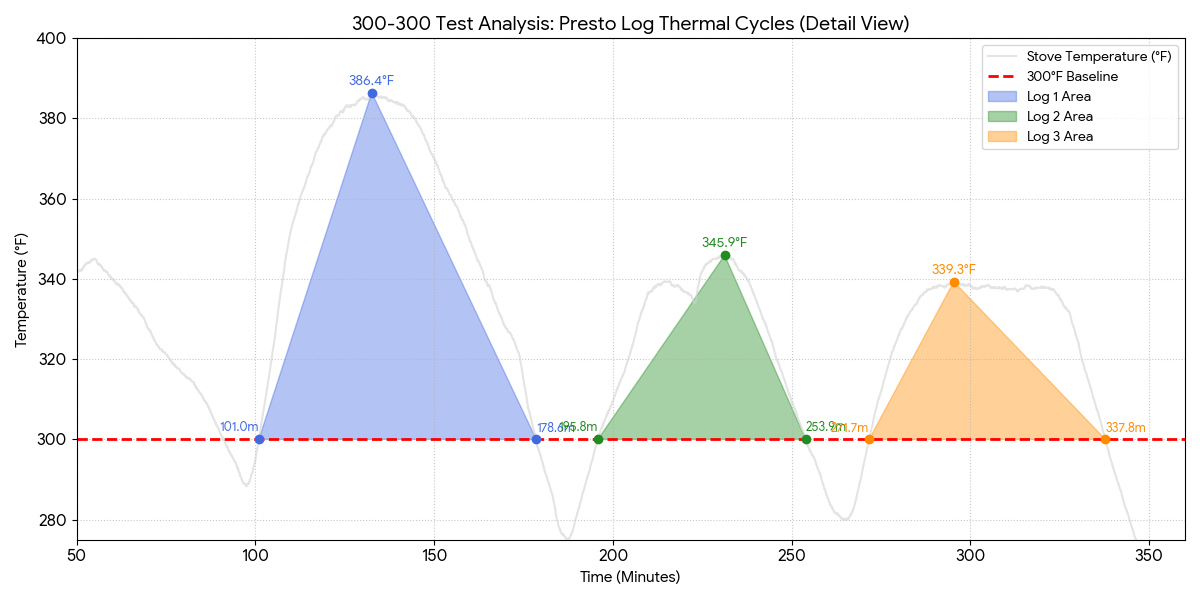

Figure 2: Three consecutive test runs of sawdust logs in a Century Heat S244.
The procedure can be run consecutively with a series of 5-pound sawdust logs, one after the other.
I collected data sets from the Century Heat S244, a smaller standalone wood stove, and a Lopi Revere insert installed in a masonry chimney. Triangles with the base in minutes and the peak in degrees F can be converted to degree-minutes.
What Does the Data Say?
The data suggests the Century Heat S244 with the Smokeless Chimney combustion control system burns sawdust logs rather well. We can expect a temperature rise of 70°F, 80 minutes of heat over 300°F, and a triangle area of 3,000 degree-minutes. The Lopi Revere—running a similar combustion air system with nearly the same program—is capable of double the S244’s power output, with longer duration, lower temperature rise, and the peak occurring late in the combustion cycle. This helps characterize the heating performance of one stove compared to another.
While the data might suggest that a larger stove emits less heat, the fuel package used was nominally identical in both mass and geometry. The phenomenon of the larger stove producing lower peak temperatures is a result of the larger airflow, heat being distributed across a greater surface area, and thermal mass. This is much like comparing a small 4-cylinder engine to a V8; the larger system absorbs and dissipates the energy differently when the fuel input remains constant.
We’re just getting started; the thought process is in motion.
